BU208D High Voltage Fast Switching NPN Power Transistor (TO 3, 1 Qty)

The BU208D High Voltage Fast Switching NPN Power Transistor is a silicon bipolar junction transistor designed for high voltage switching, horizontal deflection and power control applications. Featuring high voltage handling capability, fast switching performance and a robust TO 3 metal package, this transistor is suitable for CRT television circuits, industrial electronic equipment and high voltage power switching systems.

The BU208D is designed to handle high voltage switching pulses and demanding electrical loads in horizontal output stages and power control circuits. Its silicon power transistor construction provides reliable switching performance when operated within the manufacturer's specified electrical and thermal limits. The TO 3 metal package offers mechanical durability and supports effective heat dissipation through suitable heat sink mounting. This transistor is commonly used in CRT television repair, horizontal deflection circuits and industrial electronic switching applications.

Key Features -

• BU208D high voltage NPN power transistor

• Fast switching performance for high voltage applications

• Silicon bipolar junction transistor construction

• Suitable for CRT horizontal deflection circuits

• Robust TO 3 metal power package

• Designed for high voltage pulse switching

• Suitable for heat sink mounting

• Suitable for industrial electronic switching equipment

Specifications -

• Part Number: BU208D

• Product Type: High Voltage Fast Switching Power Transistor

• Transistor Type: NPN Bipolar Junction Transistor

• Semiconductor Material: Silicon

• Transistor Configuration: Single NPN Power Transistor

• Switching Type: High Voltage Fast Switching

• Collector Emitter Voltage (VCEO): Manufacturer Datasheet Dependent

• Collector Base Voltage (VCBO): Manufacturer Datasheet Dependent

• Maximum Collector Current (IC): Manufacturer Datasheet Dependent

• Power Dissipation (PD): Manufacturer Datasheet Dependent

• Package Type: TO 3

• Package Material: Metal

• Mounting Type: Chassis or Heat Sink Mounting

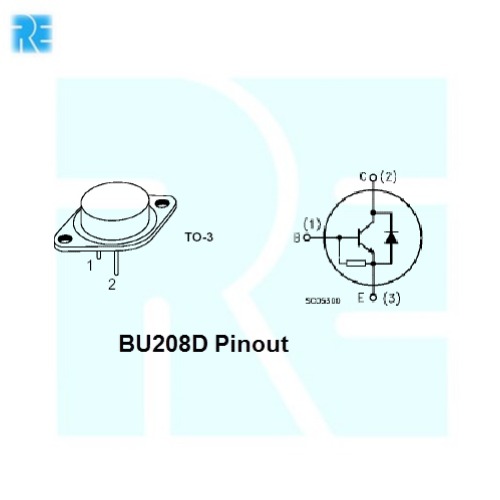

• Electrical Terminals: Base, Collector and Emitter

• Collector Connection: Metal Case

• Control Type: Current Driven

• Operating Mode: High Voltage Switching

• Primary Application: Horizontal Deflection and Power Switching

• Thermal Management: Suitable Heat Sink Required for High Power Operation

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• CRT television horizontal deflection circuits

• CRT monitor horizontal output stages

• High voltage electronic switching circuits

• Television and monitor repair applications

• Industrial power control equipment

• High voltage pulse switching systems

• Electronic power switching and driver circuits

• Industrial electronics maintenance and repair
