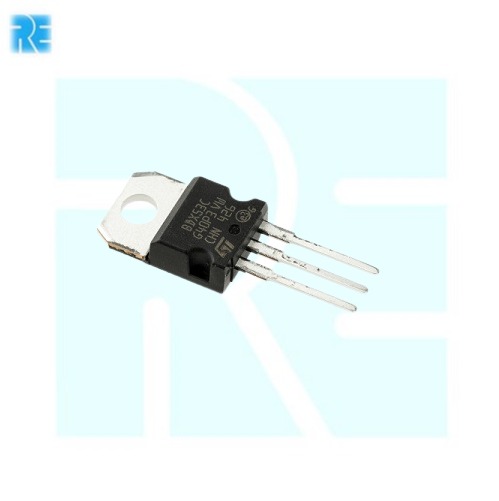

BDX53C NPN Darlington Power Transistor (100V, 8A, 60W, TO 220, 1 Qty)

The BDX53C NPN Darlington Power Transistor is a high gain silicon bipolar transistor designed for power switching, amplification and electronic driver applications. Featuring a collector emitter voltage rating of 100V, maximum collector current of 8A and power dissipation rating of 60W, this transistor is suitable for power amplifier circuits, motor control systems and industrial electronic equipment.

The BDX53C features a Darlington configuration consisting of two internally connected NPN transistors, providing high current amplification with relatively low base drive requirements. Its DC current gain of at least 750 at a collector current of 3A makes it suitable for driving higher current loads using suitable control circuits. The TO 220 package supports through hole PCB mounting and heat dissipation using an appropriate heat sink. Its complementary PNP transistor is the BDX54C, making it suitable for complementary amplifier and power driver configurations.

Key Features -

• BDX53C silicon NPN Darlington power transistor

• Maximum collector emitter voltage of 100V

• Maximum collector current rating of 8A

• Maximum power dissipation of 60W under specified thermal conditions

• Minimum DC current gain of 750 at 3A collector current

• High current amplification using Darlington configuration

• TO 220 package suitable for heat sink mounting

• Complementary to BDX54C PNP Darlington transistor

• Suitable for power switching and amplifier applications

Specifications -

• Part Number: BDX53C

• Product Type: Darlington Power Transistor

• Transistor Type: NPN Bipolar Junction Transistor

• Transistor Configuration: Darlington Pair

• Semiconductor Material: Silicon

• Collector Emitter Voltage (VCEO): 100V Maximum

• Collector Base Voltage (VCBO): 100V Maximum

• Maximum Collector Current (IC): 8A

• Maximum Power Dissipation (PD): 60W at Specified Case Temperature

• Minimum DC Current Gain (hFE): 750 at 3A Collector Current Under Specified Test Conditions

• Package Type: TO 220

• Mounting Type: Through Hole

• Number of Terminals: 3

• Terminal Configuration: Base, Collector and Emitter

• Control Type: Current Driven

• Operating Mode: Switching and Amplification

• Complementary Transistor: BDX54C

• Thermal Management: Suitable Heat Sink Required for High Power Operation

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• High current electronic switching circuits

• Audio power amplifier output stages

• DC motor control and driver circuits

• Relay and solenoid switching systems

• Industrial automation and control equipment

• Power supply and voltage regulation circuits

• Complementary Darlington amplifier stages

• Electronic power control and DIY projects
