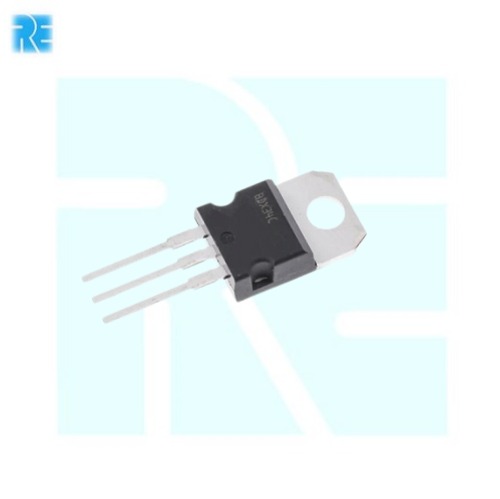

BDX34C PNP Darlington Power Transistor (100V, 10A, TO 220, 1 Qty)

The BDX34C PNP Darlington Power Transistor is a high current silicon bipolar transistor designed for power switching, amplification and electronic driver applications. Featuring a collector base voltage rating of 100V, maximum continuous collector current of 10A and high DC current gain, this transistor is suitable for medium to high power electronic circuits, motor control systems and industrial equipment.

The BDX34C features a Darlington configuration consisting of two internally connected PNP transistors, providing high current amplification with relatively low base drive requirements. Its TO 220 package supports through hole PCB mounting and allows heat dissipation using a suitable heat sink. The transistor is commonly used in power amplifier output stages, relay drivers, motor control circuits and electronic switching applications. Its complementary NPN transistor is the BDX33C, making it suitable for complementary power amplifier and driver configurations.

Key Features -

• BDX34C silicon PNP Darlington power transistor

• Maximum collector base voltage of 100V

• Maximum continuous collector current of 10A

• Minimum DC current gain of 750 under specified test conditions

• High current amplification using Darlington configuration

• TO 220 package suitable for heat sink mounting

• Suitable for high current switching and amplification

• Complementary to BDX33C NPN Darlington transistor

• Suitable for industrial power control and driver circuits

Specifications -

• Part Number: BDX34C

• Product Type: Darlington Power Transistor

• Transistor Type: PNP Bipolar Junction Transistor

• Transistor Configuration: Darlington Pair

• Semiconductor Material: Silicon

• Collector Base Voltage (VCBO): 100V Maximum

• Collector Emitter Voltage (VCEO): 100V Maximum

• Continuous Collector Current (IC): 10A Maximum

• Minimum DC Current Gain (hFE): 750 Under Specified Test Conditions

• Collector Cutoff Current: Datasheet Dependent, Specified in Microampere

• Package Type: TO 220

• Mounting Type: Through Hole

• Number of Terminals: 3

• Terminal Configuration: Base, Collector and Emitter

• Control Type: Current Driven

• Operating Mode: Switching and Amplification

• Complementary Transistor: BDX33C

• Thermal Management: Suitable Heat Sink Required for High Power Operation

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• High current electronic switching circuits

• Audio power amplifier output stages

• DC motor control and driver circuits

• Relay and solenoid switching systems

• Industrial automation and control equipment

• Power supply and voltage regulation circuits

• Complementary Darlington amplifier stages

• Electronic power control and DIY projects
