RJ45 Ethernet Connector with Integrated Magnetics and LED for 10/100 Base (RJ45 MagJack)

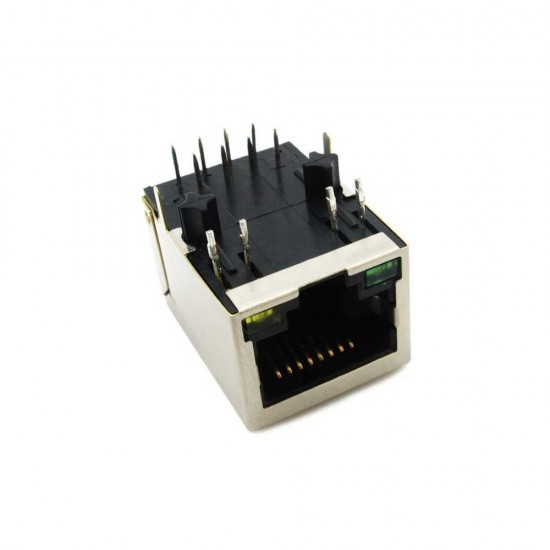

The RJ45 Ethernet Connector with Integrated Magnetics and LED for 10/100 Base is a PCB-mount MagJack connector designed for Fast Ethernet networking applications. It combines an RJ45 socket, integrated isolation magnetics, EMI filtering, and status LEDs into a single compact module, simplifying PCB design while ensuring reliable 10/100 Mbps Ethernet communication.

The integrated transformer provides electrical isolation between the Ethernet cable and network circuitry, while the built-in LEDs indicate link and activity status, making it ideal for embedded systems, industrial automation, networking equipment, IoT devices, and communication interfaces.

Key Features -

• RJ45 Ethernet connector with integrated magnetics

• Supports 10/100 Base-T Ethernet networks

• Built-in isolation transformer and EMI filtering

• Integrated link and activity LED indicators

• Standard RJ45 female Ethernet socket

• Through-hole PCB mounting

• Compact and reliable network interface solution

Specifications -

• Product Type: RJ45 MagJack Connector

• Connector Type: RJ45 Female

• Ethernet Standard: 10/100 Base-T

• Magnetics: Integrated Isolation Transformer

• LED Indicators: Built-In Link and Activity LEDs

• Mounting Type: Through-Hole PCB Mount

• Contact Material: Gold-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Shielding: Metal Shielded Housing

• Application: Ethernet Network Interface

Applications -

• Ethernet-enabled embedded systems

• Industrial automation equipment

• Network switches and routers

• IoT devices

• Single-board computers

• Communication equipment

• Network interface modules

• Electronic product development
