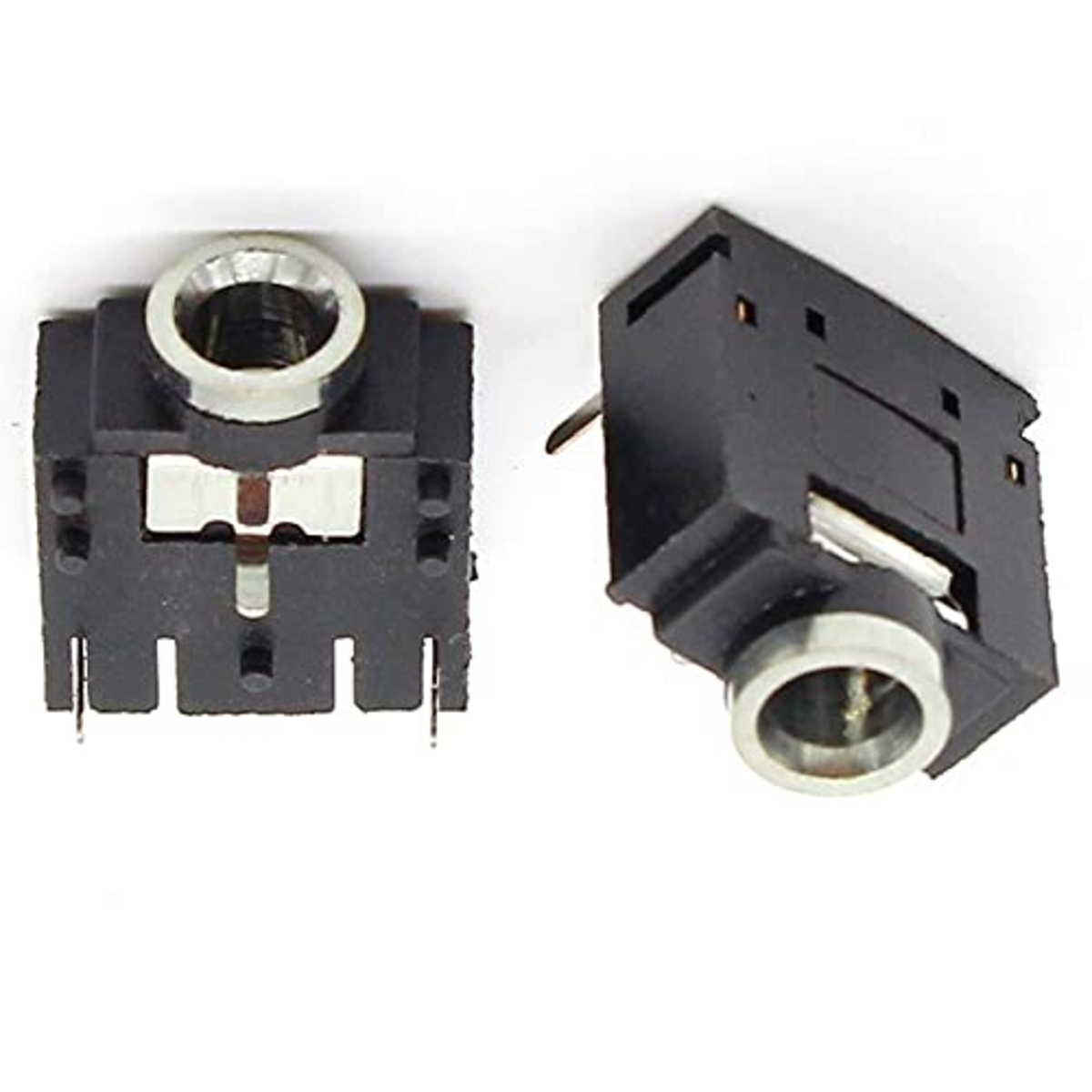

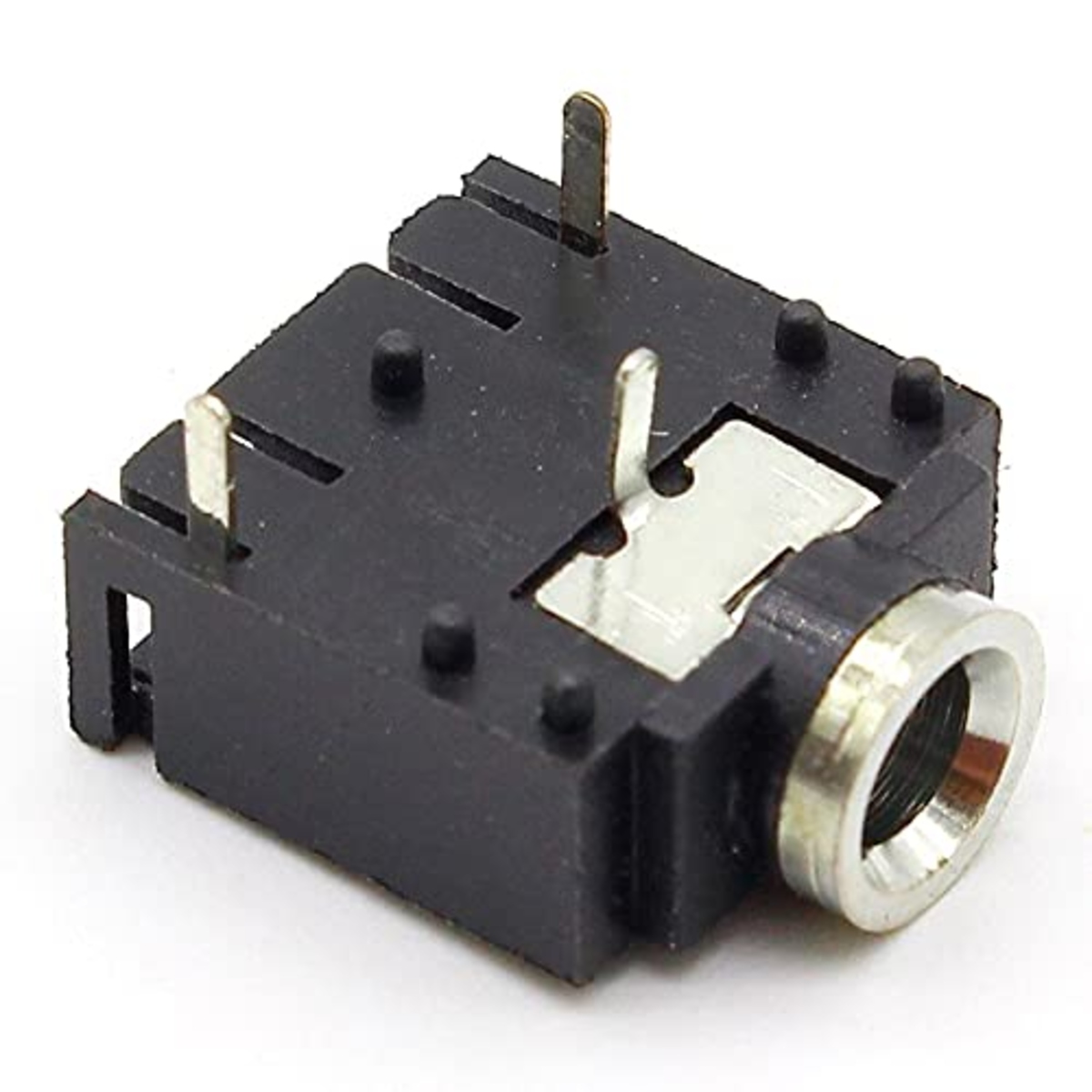

3 Pin PCB Mount 3.5mm Type 285 Stereo Female Audio Socket

The 3 Pin PCB Mount 3.5mm Type 285 Stereo Female Socket is a PCB-mount stereo audio jack designed for reliable audio and signal connections in multimedia devices, amplifiers, headphones, portable electronics, and embedded systems. It features a 3.5mm TRS (Tip-Ring-Sleeve) female socket with 3 solder pins for direct PCB installation, ensuring stable electrical performance and compact integration.

Its durable construction makes it suitable for audio equipment, DIY electronics, and electronic product manufacturing.

Key Features -

• 3.5mm stereo female audio socket

• Type 285 PCB mount design

• 3-pin solder terminal configuration

• Supports stereo audio transmission

• Compact and durable construction

• Reliable electrical contact

• Easy PCB installation

Specifications -

• Product Type: Stereo Audio Socket

• Model: Type 285

• Connector Type: 3.5mm TRS Female

• Number of Pins: 3

• Mounting Type: PCB Mount

• Termination Type: Solder Pins

• Contact Material: Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Stereo Audio and Signal Connection

Applications -

• Headphone sockets

• Audio amplifiers

• Multimedia devices

• Portable electronic equipment

• Embedded systems

• DIY audio projects

• Test and measurement equipment

• PCB-based electronic designs
