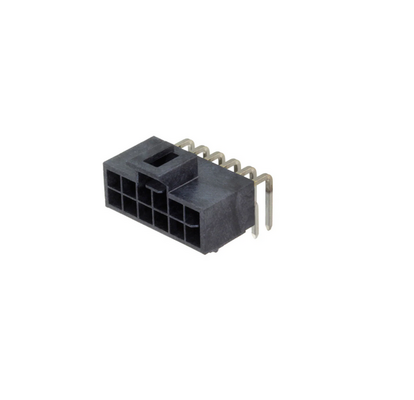

105314-1212 12 Pin Nano-Fit 2.5mm Right Angle Header Connector (Molex 105314-1212)

The Molex 105314-1212 is a 12-pin Nano-Fit right-angle header connector designed for compact, high-density wire-to-board power and signal connections. Featuring a 2.50mm pitch and right-angle through-hole PCB mounting, it provides secure mating, excellent electrical performance, and reliable mechanical retention in space-constrained electronic designs.

As part of the Molex Nano-Fit connector series, this header is ideal for industrial automation, power supplies, automotive electronics, embedded systems, consumer electronics, and other applications requiring compact, high-current interconnections.

Key Features -

• Genuine Molex Nano-Fit right-angle header

• 12-pin wire-to-board connector

• 2.50mm pitch compact design

• Right-angle through-hole PCB mounting

• Positive locking mechanism for secure mating

• High-density power and signal connector

• Suitable for automated PCB assembly

Specifications -

• Product Type: Wire-to-Board Header Connector

• Manufacturer: Molex

• Part Number: 105314-1212

• Series: Nano-Fit

• Number of Positions: 12

• Pitch: 2.50mm

• Orientation: Right Angle

• Mounting Type: Through-Hole PCB Mount

• Contact Material: Copper Alloy

• Application: Power and Signal Interconnection

Applications -

• Industrial automation equipment

• Automotive electronic systems

• Power supply units

• Embedded control systems

• Consumer electronic devices

• Robotics and automation projects

• Communication equipment

• Electronic product development
