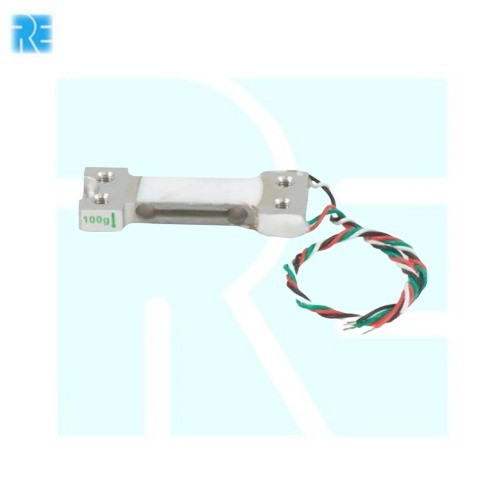

100gm Straight Bar Mini Load Cell Electronic Weighing Scale Sensor (Aluminium Strain Gauge Weight Sensor)

The 100gm Straight Bar Mini Load Cell is a compact strain gauge based weight sensor designed for precise measurement of low loads. It converts mechanical force applied to the sensing element into a proportional millivolt electrical signal. The 4-wire Wheatstone bridge configuration makes it suitable for use with HX711 amplifier modules, ADC circuits, Arduino, and other embedded weighing systems.

Key Features -

• Rated capacity of 100gm

• Straight bar parallel beam type structure

• High-precision strain gauge sensing element

• Aluminium alloy construction

• Compact design for miniature weighing systems

• 4-wire Wheatstone bridge configuration

• Millivolt-level analog output

• Compatible with HX711 and ADC amplifier modules

• Suitable for Arduino and embedded electronics projects

Specifications -

• Sensor Type: Strain Gauge Load Cell

• Rated Capacity: 100gm

• Structure: Straight Bar Parallel Beam Type

• Material: Aluminium Alloy

• Output Type: Millivolt Analog Signal

• Bridge Type: Wheatstone Bridge

• Number of Wires: 4 Wire

• Protection Rating: IP65 typical

• Mounting: Four M3 mounting holes typical

• Recommended Amplifier: HX711 or compatible ADC amplifier

Applications -

• Precision electronic weighing scales

• Miniature weighing systems

• Laboratory and scientific instruments

• Jewellery and micro weighing applications

• Force sensing and measurement projects

• Arduino weighing scale projects

• Embedded weight measurement systems

• DIY electronic weighing projects
